llama2-rs

This is a rewrite of llama2.c to Rust and Apple M2 Metal GPU, with a bit of Rayon. This code is just for learning purposes, it is not maintained. Below are the learnings.

Prerequisites

You need tokenizer.bin from the original llama2.c repo, also you need the TinyStories model, or a full llama2 7B model. See llama2.c on how to download and convert the model.

Diagrams

Here are some diagrams that I draw along the implementation to understand what the code actually does. Those diagrams later helped me to figure which matrix multiplications can be run independently.

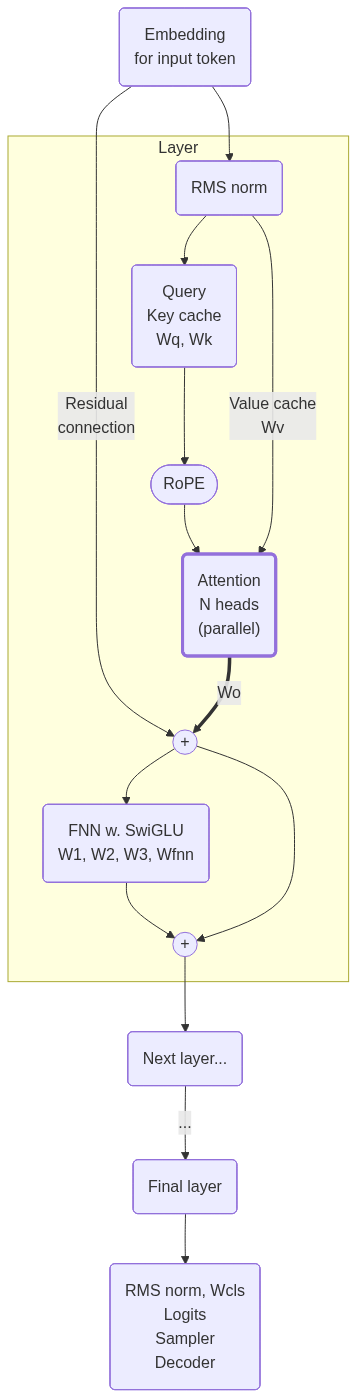

High level

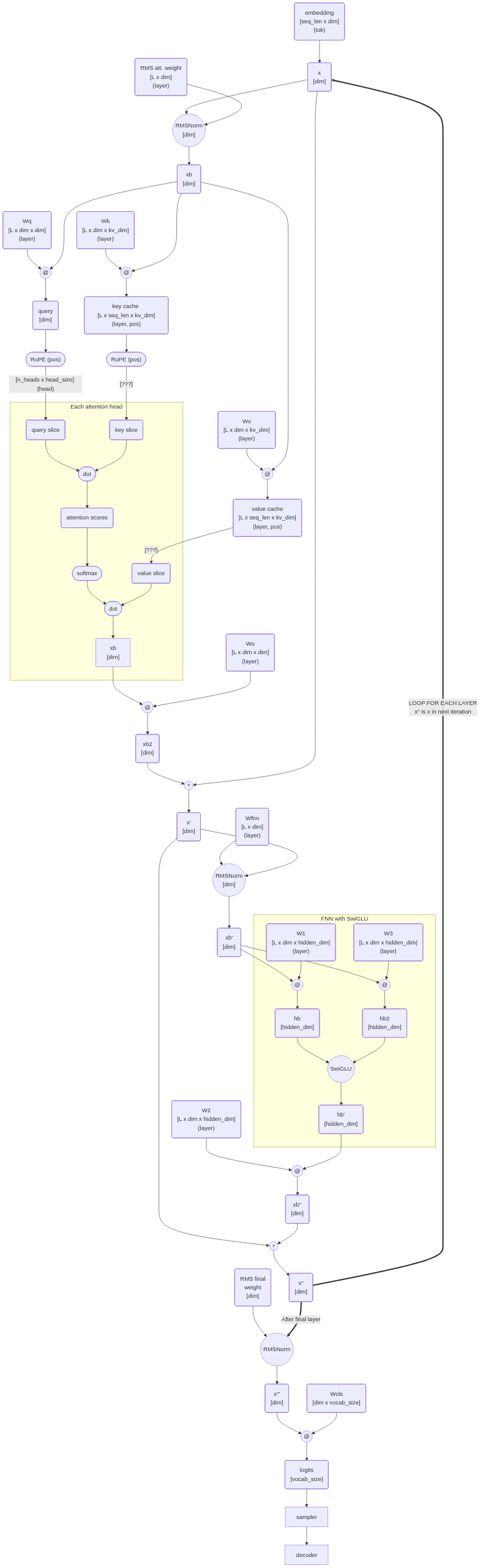

Detailed

The detailed flow diagram based directly on the code:

Learnings

Rust:

  • Using Rust type (like TokenId instead of usize) helps to understand the code.

  • Use assert! a lot. When you have matrices or vectors that assume some sizing, add assertions to find the bugs early. Most of this code deals with buffers of different sizes, and the sizing is often the only thing that you can assume. An assertion firing was several times the only thing that hinted me that I confused dimensions.

  • If you don’t keep Mmap object alive, it will be dropped and accessing the pointed data will result in a segfault.

  • Use cargo objdump --bin llama2-rs -- -d -S ./target/debug/llama2-rs to see the assembly output, e.g. to see if the code is vectorised.

  • You can check if the generated code uses SIMD and vectorization by inspecting disassembled code, and looking for SIMD instructions (that start with “f” like fmul):

    make objdump-llama | egrep '^000| \tf' | grep llama2_rs -A1

0000000100005494 <_llama2_rs::main::h9ba2e6463cb6eab5>:
100005710: 1e202008    	fcmp	s0, #0.0

Rayon:

  • Just slapping rayon and par_iter tremendously speeds up the code.

  • Use RAYON_NUM_THREADS=1 for sequential execution, good for debugging.

Metal:

  • Just slapping GPU at the problem (this problem at least) will not make it magically faster.

  • I didn’t see much difference in performance when using shared or private GPU memory buffers. Maybe it’s because of specific access patterns of the program.

Float16:

  • 65520 is already an infinity in f16.

  • Apple M2 Metal does not support matrix multiplication on BFloat16:

    MPSMatrixMultiplication.mm:3260: failed assertion `Input data type must be one
of MPSDataTypeFloat32, MPSDataTypeFloat16, MPSDataTypeInt8, or
MPSDataTypeInt16.'
  • Also, you cannot multiply int and float in a single matmul:
    MPSMatrixMultiplication.mm:3250: failed assertion `Mixed input matrix
multiplication is only supported when A.dataType == C.dataType ==
MPSDataTypeFloat32 and B.dataTyp e == MPSDataTypeFloat16.'

  • When doing matmul on f16, you need the output to be f32, otherwise the output will corrupt. Fortunately, Metal supports matmul for f16 at input and f32 at output.

  • Using f16 was slower for TinyStories than f32.

Other:

  • ChatGPT was very useful in learning lldb commands.

  • mermaid is an absolutely fantastic tool for diagrams.

  • Monitor if you memory does not start to swap , with sysctl vm.swapusage or Activity Monitor. If mem swaps, the computation will instantly become dog slow.

  • Apple’s Instruments is useful to see GPU utilization, flamegraphs, etc. You need cargo instruments. See Makefile and instruments-tinystories there on how to use that. Mind that you need debug symbols in the binary, with debug = true in Cargo.toml

Benchmarking Rayon

I didn’t run very rigorous benchmarks, rather run inference on TinyStories 42M model, and also on llama2 7B model.

  • 34 tok/s - TinyStories, no parallelization, no rayon, sequential as it can be. commit

  • 27 tok/s - using naively par_bridge commit. Slapping naively par_bridge is slower that sequential execution on a single code. I suppose it’s the overhead of coordination of those small work chunks.

  • 132 tok/s - with naive use of rayon and par_iter. commit. Rayon is awesome!

We can further tweak Rayon to take larger chunks of work, to spend less on coordination. Here are the results of modifying with_min_len parameter:

  • 1 - 132 tok/s
  • 5 - 146 tok/s
  • 10 - 153 tok/s
  • 15 - 154 tok/s - best with_min_len value. commit
  • 20 - 150 tok/s
  • 40 - 142 tok/s
  • 70 - 115 tok/s
  • 150 - 93 tok/s

FTR, the machine I use has available parallelism is 12 (8 performance and 4 efficiency cores).

Metal

I use Apple Metal to interface GPU and run matrix multiplciation on GPU. Examples:

Caveat: for TinyStories the benchamrks are in tok/s (higher better) and for llama it’s s/tok (lower bertter).

Running llama2 (make run-napalm) with matmul naively computed in GPU (shared memory buffers, Metal native matmul) yields ~20% GPU utilization, and ~60 s/tok. For CPU with Rayon, it’s ~20 sec per token. So, just throwing naively GPU at the problem didn’t help at all.

Initially all the models were in f32, I later cast the models to f16 (1/2 mem usage). Surprisingly, using f16 made TinyStories inference slower (12.8 tok/s with f16, drop from 16 tok/s with f32).

I played with shared GPU memory and private GPU memory. In theory private mem should work faster since there there is no cache synchronization with CPU. But, when I moved the weights from shared mem to private mem, the inference was somewhat slower: I got 4.26 ms per matrix multiplication with shared buffer, and 4.52 ms for private buffer - commit. Maybe it was because matrix W was in private mem and vector X was in shared mem?

I optimised the code to not wait for GPU result when I don’t need to (pipelining). That is, I push commands to Metal’s command buffer, those commands run in parallel to CPU, and I wait (blocking) for the result when I need it. With the pipelined execution on GPU I got 18.5 tok/s on TinyStories and 3.5 s/tok on llama2. Note that for TinyStories, it was way faster to run it with Rayon and CPUs. For llama2, it’s faster to run it on GPU.
